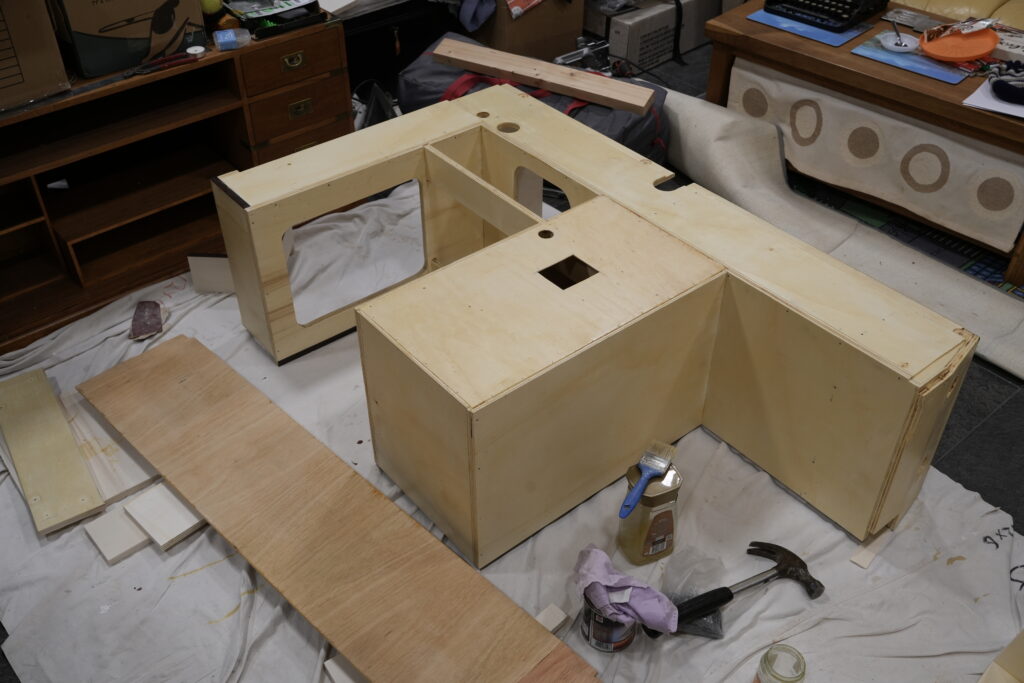

Not much space to get everything in. This is the first unit that incorporates the fridge, hob/grill and sink. It’s work in progress so watch this space. The back and inside is varnished and the outside will be similar to the original yellow and brown.

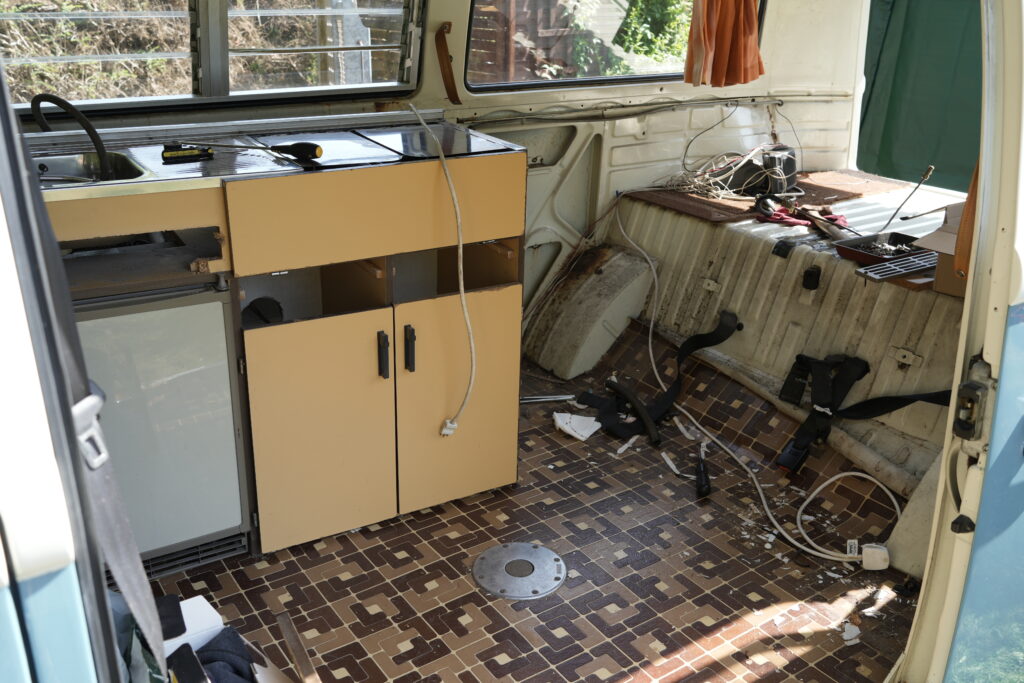

Took out the units, they were not held in by much and the conversion work from Devon looked very poor quality. Holes where the power cables went not being de-burred and grommets not fully in the holes, just one of the things.

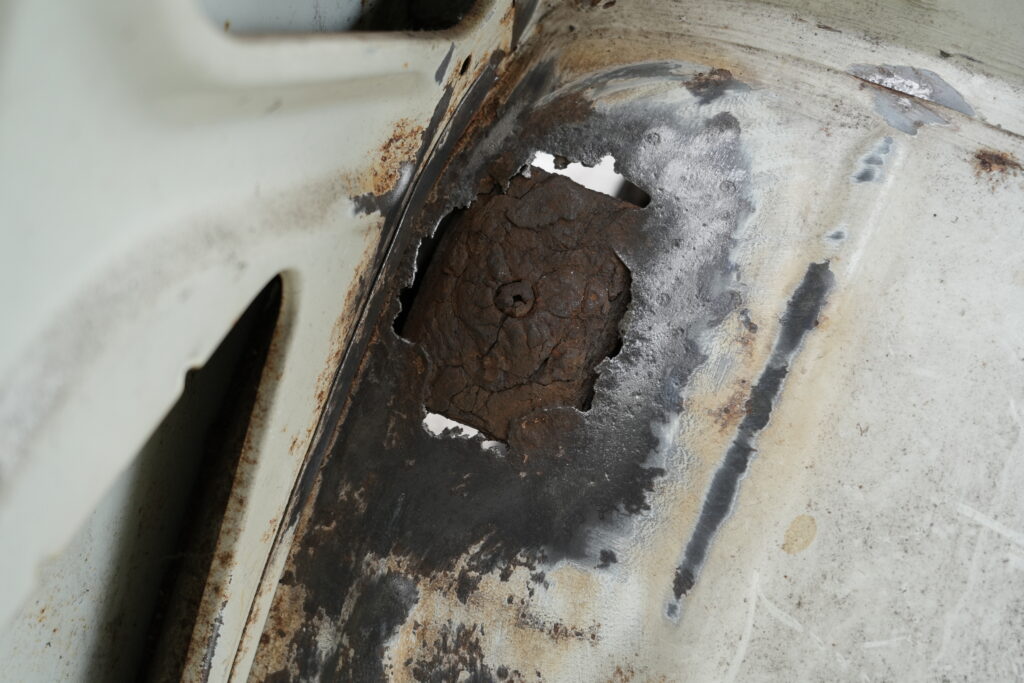

Anyway behind the units I can see the lower outer panel had been replaced. I cleaned up the area and repainted it plus welded a patch over the unused seat belt mount which was rusted through. The surface rust along the edge seems to be the result of leaking window and leaking water socket. The cupboards show a lot of water damage so I guess it leaked for years.
The outer repair needs some work. It was seems to be an old repair and the new paint has not stuck well to some areas of filler so there are a few bubbles along the edge. Now cracking and rusting.
Sound proofing and insulation. This is a right controversial and well debated topic of on-line van conversions. There is a lot of misinformation and unjustified opinions but also between the dross some good info. I’m not sure where my approach lies but as a start I wanted to do something behind the units as once they are in I don’t intend to remove them.

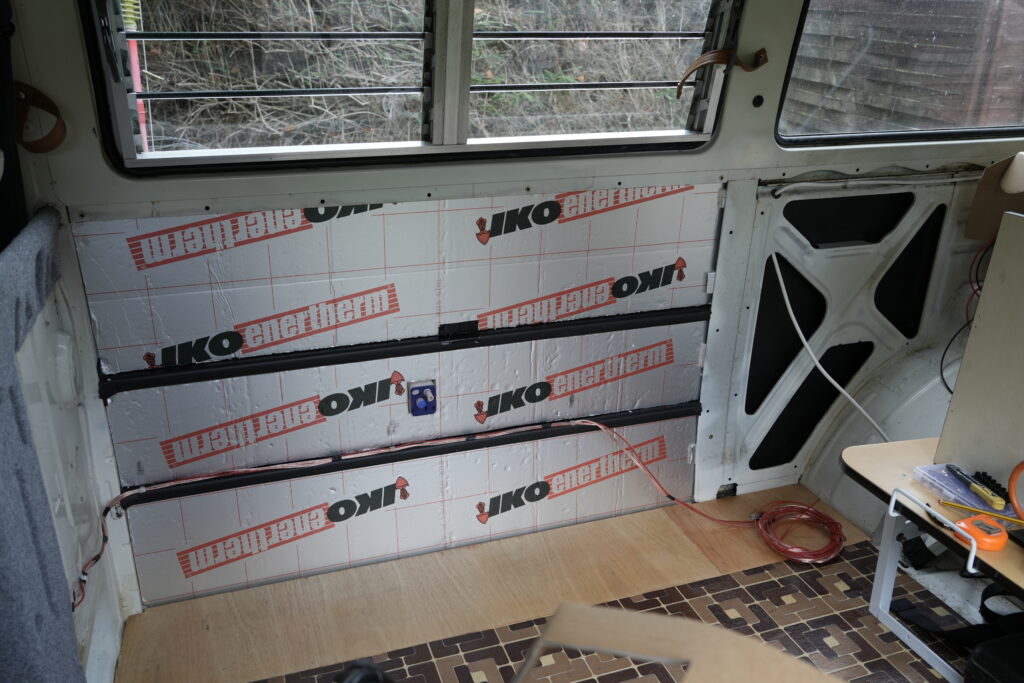

I used Dodo Mat to provide some sound proofing and insulation. It’s closed cell, adhesive and really easy to apply. The basic one is 5mm and was cheap enough to give it a go. Over that, in just the area in the picture, I glued in some 1″ PIR board. A later post will continue with the insulation!
We retained the original 70’s floor with the part under the units trimmed off as it was a bit tatty. The ply is the same thickness and varnished to seal it. I didn’t add insulation under the floor and it’s not really going to be an all season camper so doesn’t need to meet the extreme’s of winter, off grid camping. Yep, I’m a fair weather camper 😉
Look closely and the wheel arch is fixed and lining material is on the bulkhead, all ready for the units….

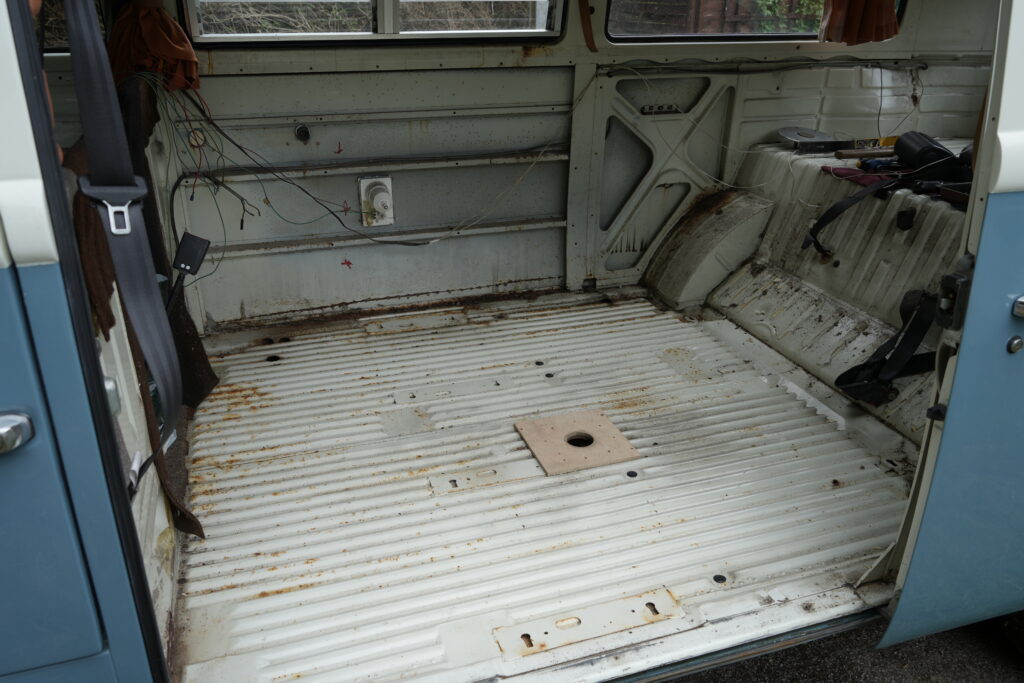

Well, a few outings later and the chipboard cupboards had clearly suffered previously through damp, wear and tear and 45 years of camping. So out with the interior starting with the seats.

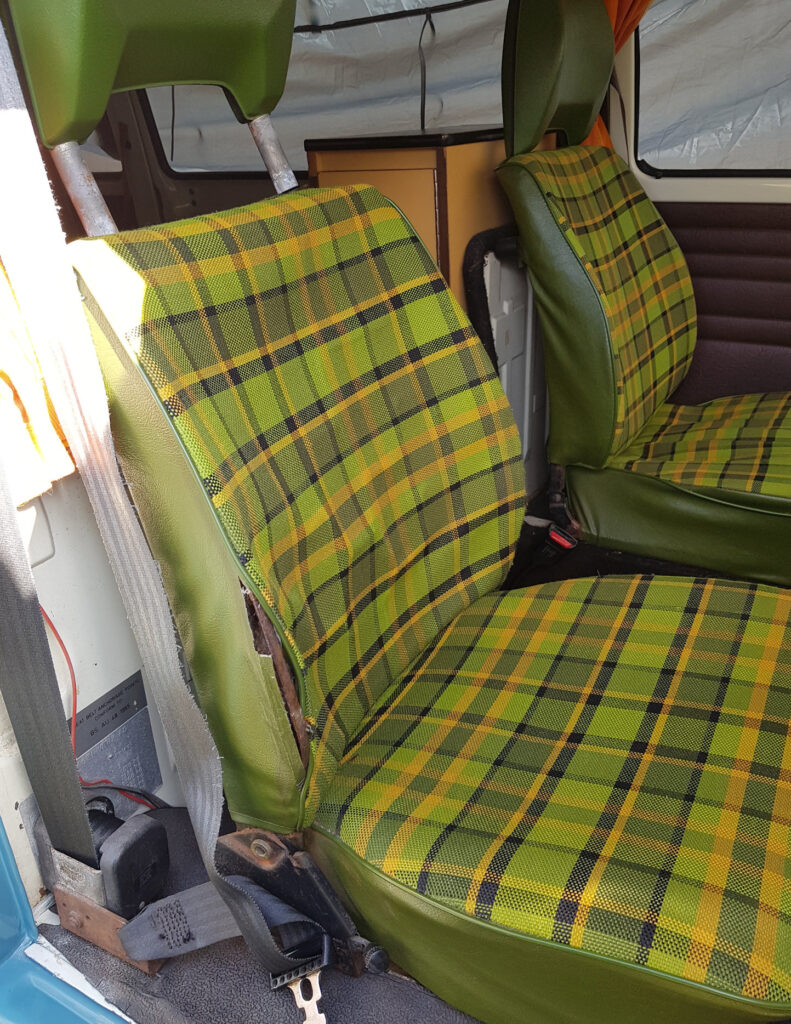

The drivers seat was very uncomfortable as I was sitting directly on the springs, not sure where the padding had gone. I stripped the front seats down and cleaned them up, having to straighten the frame and weld it where it had broken. Our local car upholsterer recovered them in leather and a fabric I found which was similar to the 70’s original style for a Devon conversion (not a Westie). Must be good as she said everyone who went to her workshop liked the material. (Note, I found it first !!).

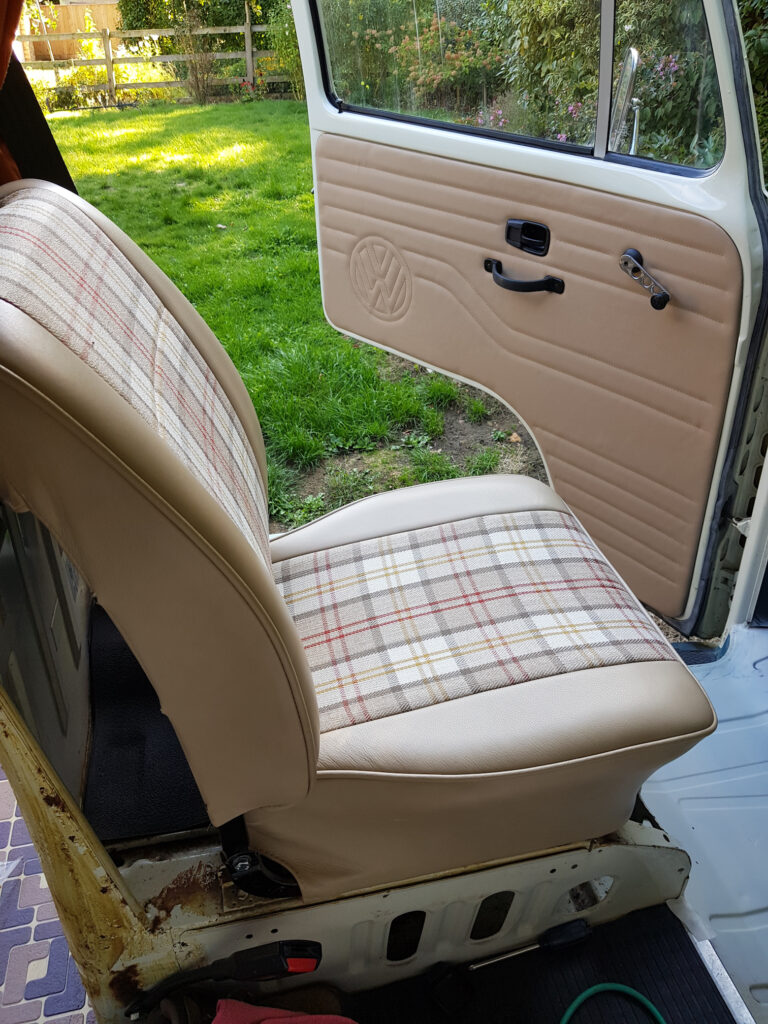

New seats and new door cards. You can just see the cab floor which I cleaned up in the passenger side. I added more waxoil to the doors and sills although the work done previously had done that too.
The rock and roll bed got a similar strip down and repaint. Here are all the bits in primer.
With the running cost and work required on the L322 Range Rover we decided part with it. It was a top spec version and really nice but needed some rear subframe work and had a steering lock that was reluctant to disengage. Unfortunately we had already sold the P38 Range Rover which although got a bit tatty was reliable. Without our towing car, which also doubled as our tip run car, the caravan had also to go with the idea of buying a small campervan.
Second hand 6-8 year old VWs were very tempting but still had a hefty price tag for something that was just occasional use. So here we are with a classic VW T2 bay. To avoid yet another complete restoration project, this one had to be useable without taking of the road for major work.
It was a bit of a risk as it had a nice paint job and I saw assured the bodywork was good. A bit of a poke around and it seemed ok but who knows what lurks under the shiny paint.
Interior had not been touched but that gives us the opportunity to make it how we want.
